Gray Eagle

Armed Persistence

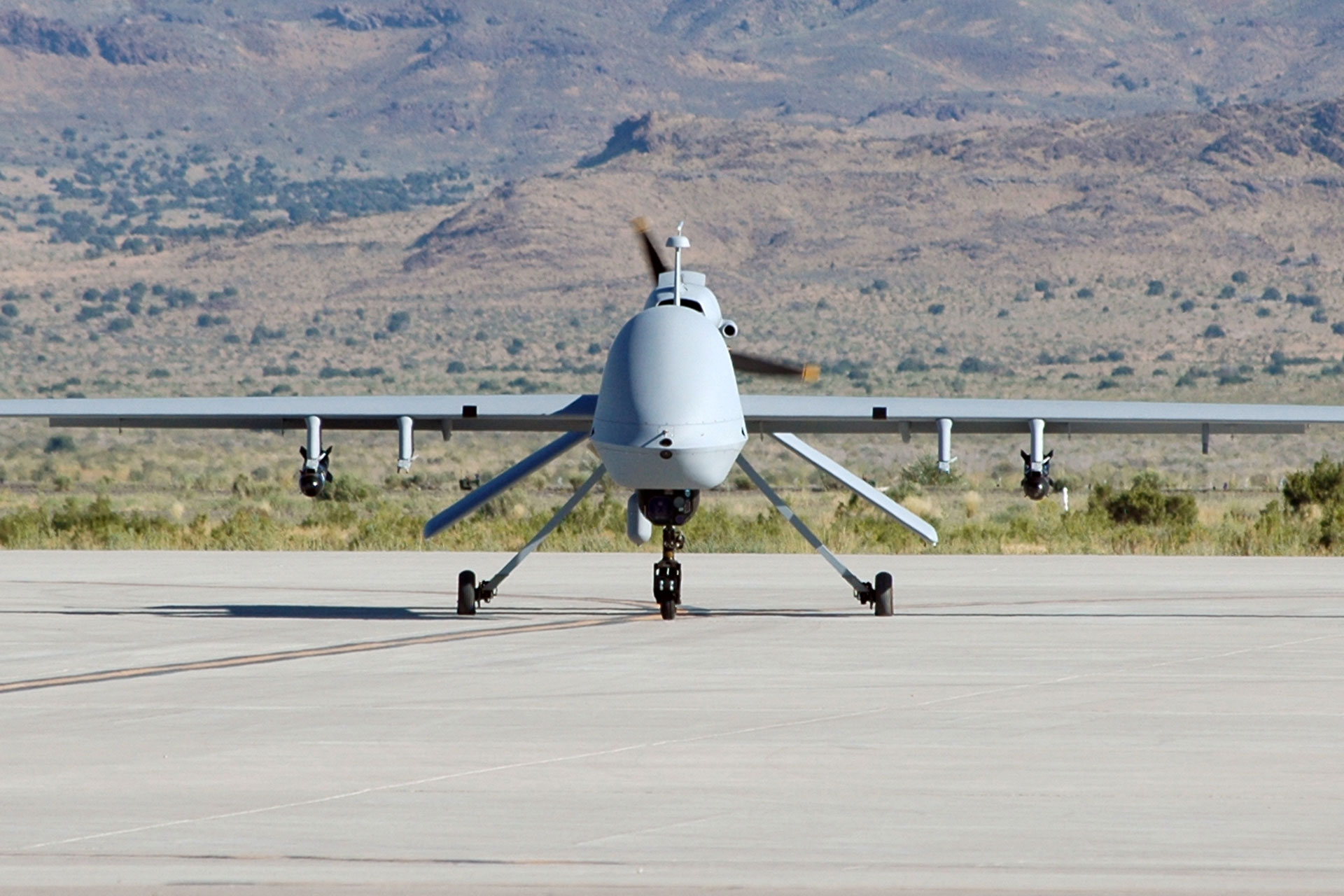

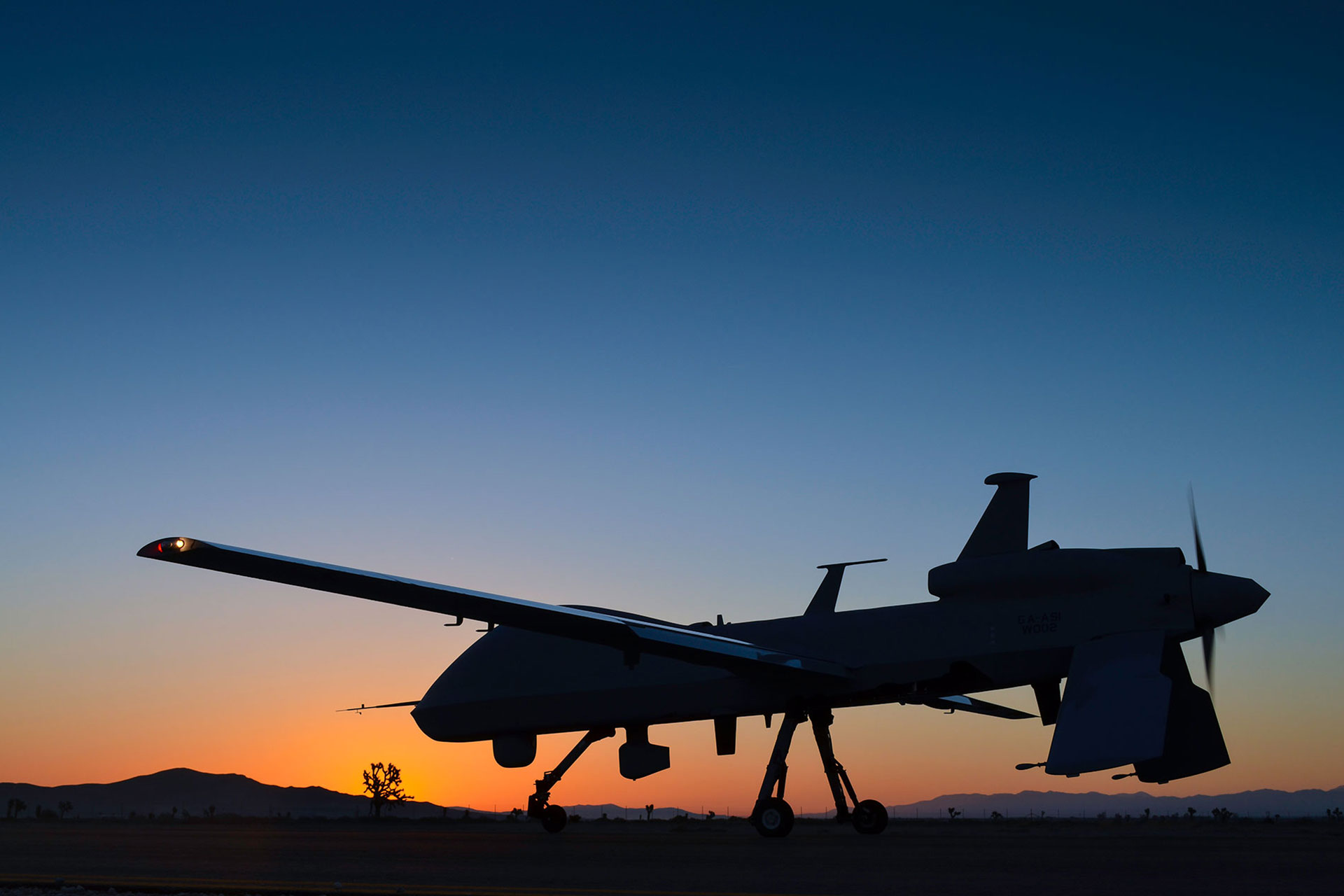

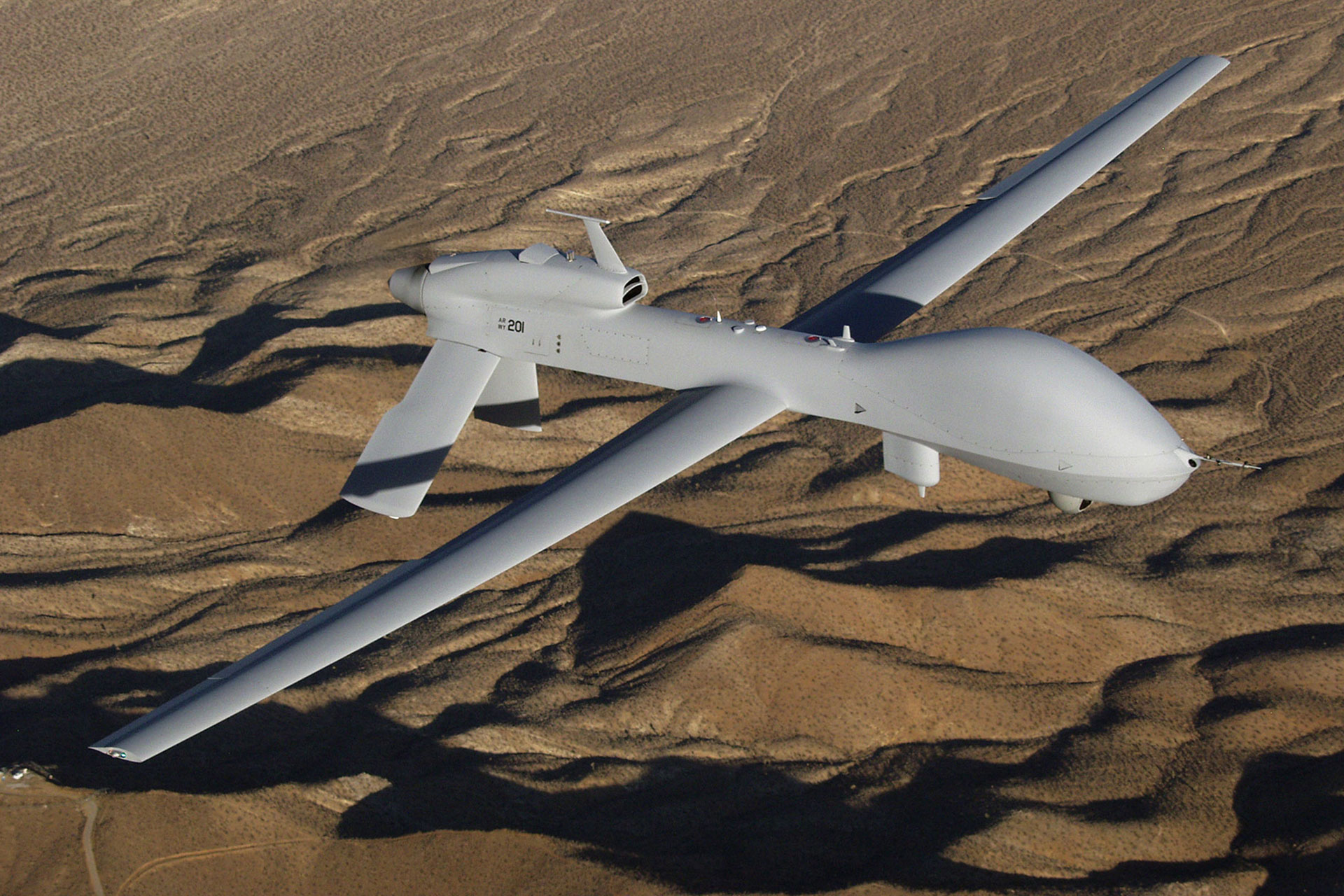

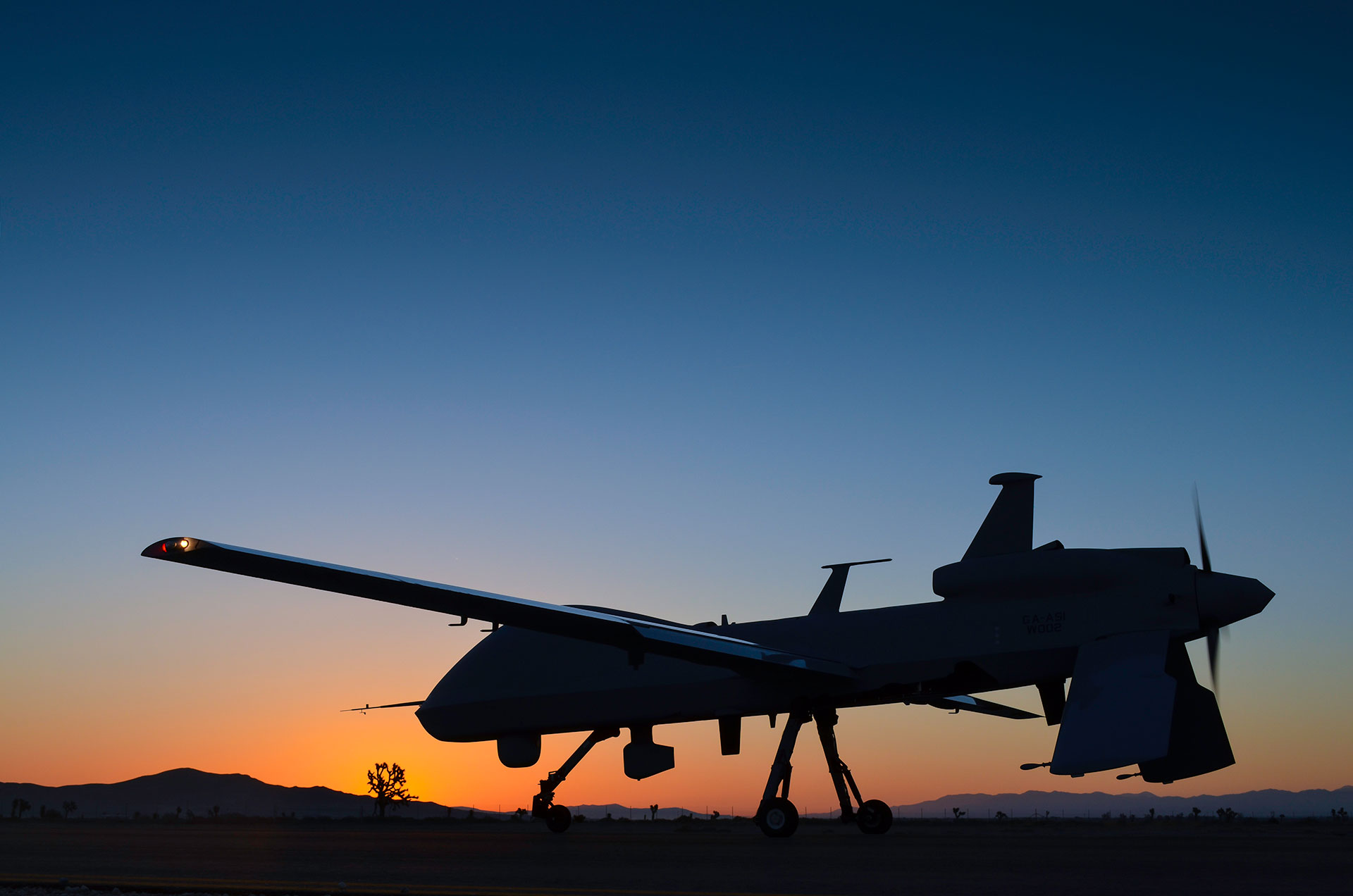

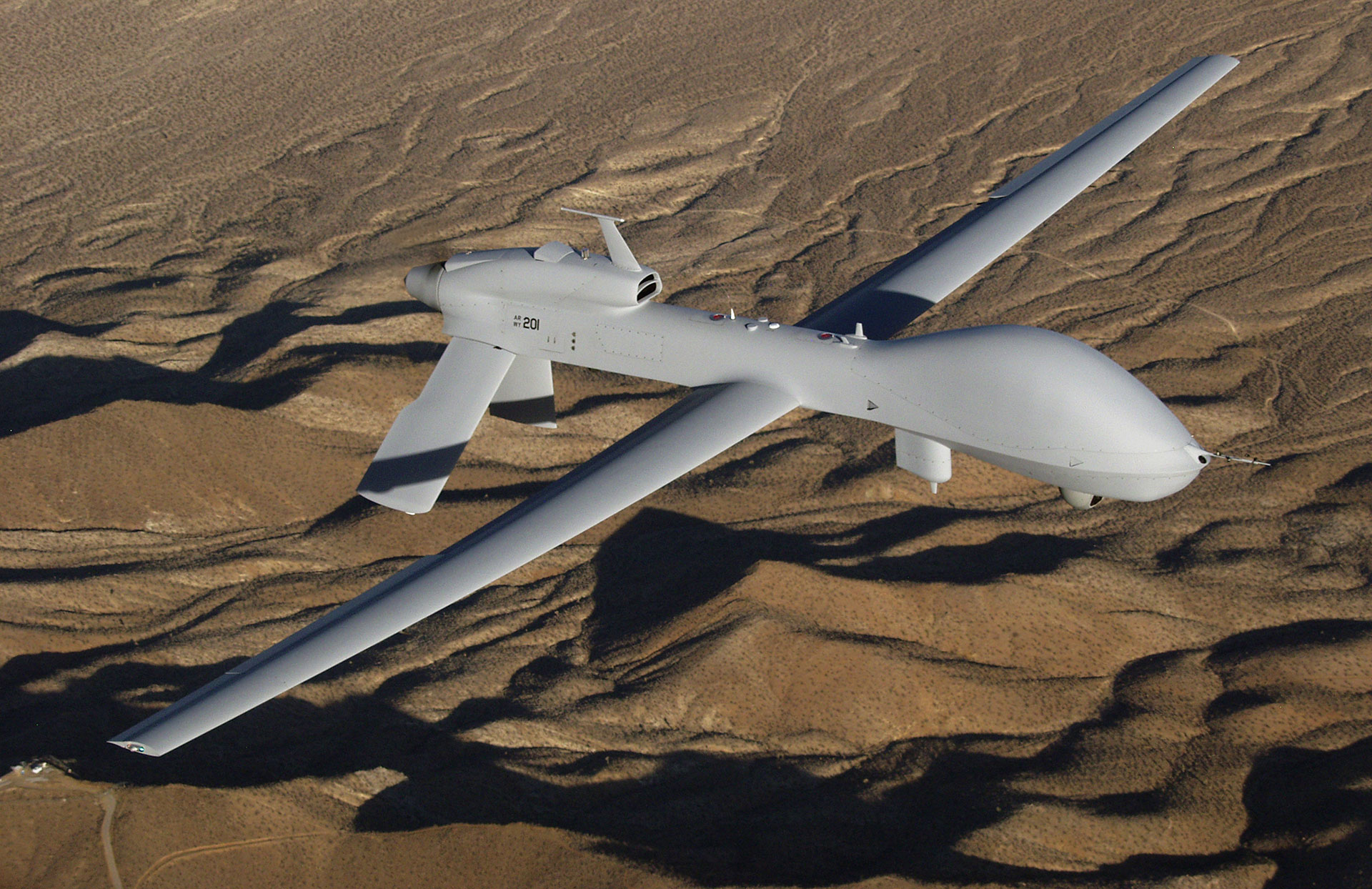

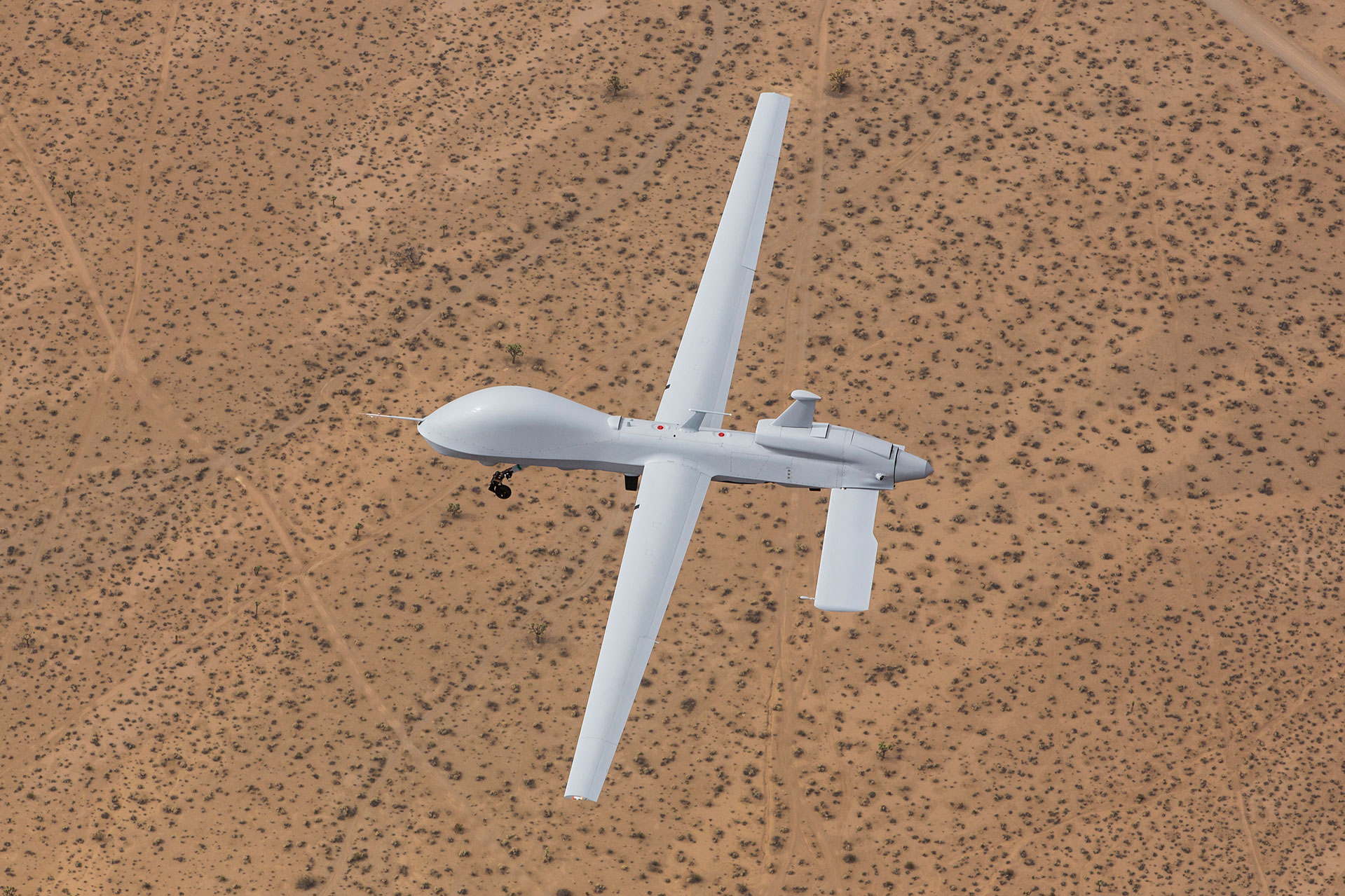

An essential element of the U.S. Army's Aviation Modernization Plan, GA-ASI's Gray Eagle Unmanned Aircraft System (UAS) is an innovative and technologically advanced derivative of the combat-proven Predator®. Gray Eagle offers a reliable, affordable, low-risk, and compelling next-generation tactical UAS solution to meet challenging service requirements for persistent Reconnaissance, Surveillance, and Target Acquisition (RSTA) and attack operations.

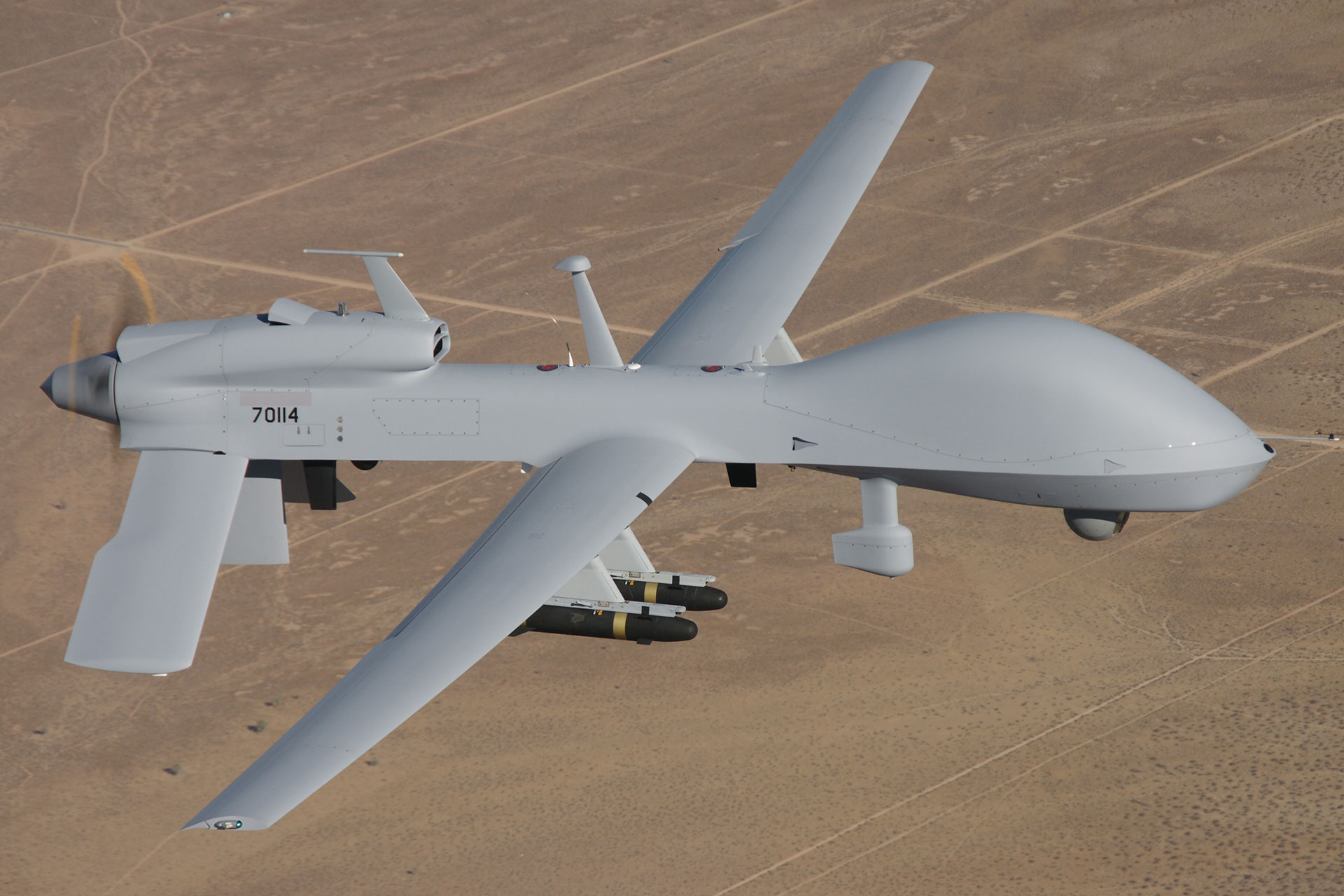

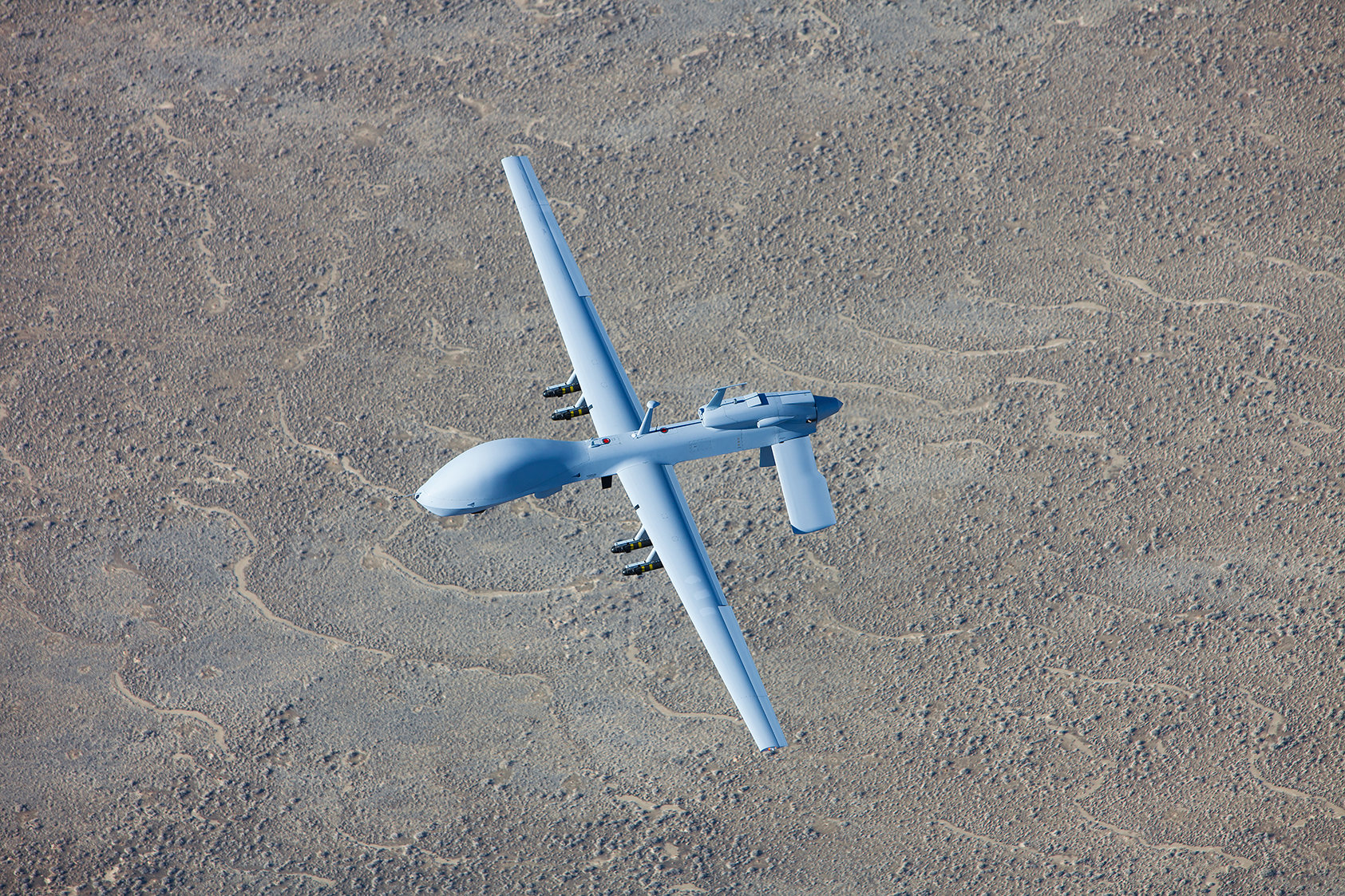

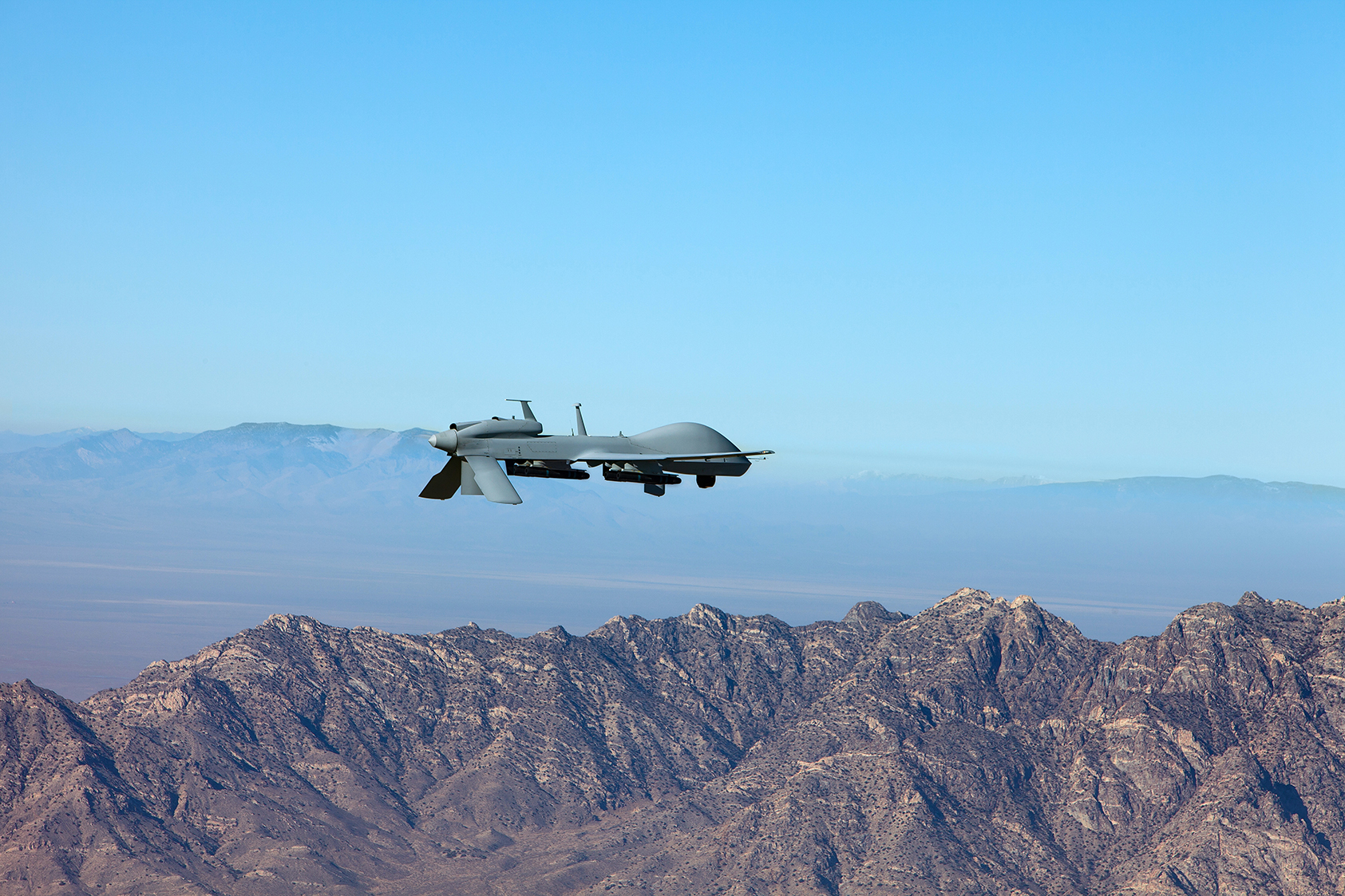

Gray Eagle has an endurance of 25 hours, speeds up to167 KTAS, can operate up to 29,000 feet, and carries 1,075 lb (488 kg) of internal and external payload. The aircraft can carry multiple payloads aloft, including Electro-optical/Infrared (EO/IR) with laser designation, Synthetic Aperture Radar (SAR), communications relay, and four Hellfire missiles.

Compared to the Predator predecessor, Gray Eagle's Heavy Fuel Engine (HFE) supports the Army's "single fuel in the battlefield" concept and provides increased horsepower and significantly improved fuel efficiency, utilizing either jet or diesel fuel.

An extremely reliable UAS, Gray Eagle features a fault-tolerant control system and a triple-redundant avionics system architecture, similar to the systems integrated in the battle-proven Predator B. Designed with airworthiness as a primary consideration, Gray Eagle is engineered to meet and exceed manned aircraft reliability standards.

This long-range, long-dwell UAS is dedicated to direct operational control by Army field commanders. Its expansive mission set includes, but is not limited, to wide-area Intelligence Surveillance and Reconnaissance (ISR), convoy protection, Improvised Explosive Device (IED) detection and defeat, close air support, communications relay, and weapons delivery missions.

Gray Eagle features an automatic takeoff and landing system (ATLS) that allows the aircraft to be launched and recovered without any operator interaction. Gray Eagle aircraft have successfully conducted tens of thousands of takeoffs and landings.

Objective
Provide a long-endurance, persistent Intelligence, Surveillance and Reconnaissance (ISR) and tactical strike capability.
Characteristics
Wing Span: 56 ft (17m)
Length: 28 ft (9m)
Powerplant: Thielert 165 HP heavy-fuel engine
Max Gross Takeoff Weight: 3,600 lb (1633 kg)
Fuel Capacity: 575 lb (261 kg)
Payload Capacity: 575 lb int. (261 kg)
500 lb ext. (227 kg)
Weapons: 4 Hellfire missiles
Payloads: EO/IR
SAR/GMTI
Communications relay
Power: 9 kW (redundant)
Performance
Max Altitude: 29,000 ft (8839.2m)
Max Endurance: 25 hr
Max Air Speed: 167 KTAS
Features
  • Controllable from U.S. Army One System Ground Station or GA-ASI GCS
  • Triple-redundant flight control system
  • Redundant flight control surfaces
  • Redundant automatic takeoff and landing
  • De-ice wings and tails
  • TCDL line-of-sight satellite communications
  • Over-the-horizon Ku-Band SATCOM
  • TCDL air data relay communications
  • Over 90% system operational availability
  • C-130 transportable
  • Automatic takeoff and landing system
